Factory Seconds
Item: EX10030412
|Model: SBS-SM-130C
Sound Meter - class 2 - 30-130 dB
€149.00
€179.00
Qty
Discount
Per item
3+
3%
€144.53
5+
6%
€140.06
10+
9%
€135.59
Key features
- Precise – high accuracy of ± 1.4 dB meets sound classification requirements
- Broad frequency range of 31.5 Hz to 8 kHz – includes frequencies outside the range audible to humans
- Electroacoustic properties of the device are oriented to the required standard IEC 61672: Type 2
- Effective – 3 measurement ranges plus automatic measurement range for meaningfully graduated measurement results
- Powerful – 30 h operating time with a 9 V battery
- Portable tripod included
Delivery details
Returns and warranty
Downloads
Works
Old driver on CD. After installing the software, under Devices and Printer, find the Silicon Labs CP210x USB to UART device. Select device Properties/Hardware/Properties/Change settings/Driver and update the driver. The latest driver can be downloaded from https://www.silabs.com/developers/usb-to-uart-bridge-vcp-drivers?tab=downloads#software.
BLACK FRIDAY ENDS IN
0
d
:
0
h
:
0
min
:
0
s
Similar categories
Technical details
Battery type
9V
Electricity supply
AC adapter + battery
Display type
LCD
Range
Sound: 30-130 dB
Accuracy
±1.4 dB
Measurement time [s]
Fast (125 ms) / Slow (1 s)
Computer interface
USB
Frequency Weighting
A, C
Frequency measurement range
31.5 Hz - 8 kHz
Memory size for measurements
262 100
Hold
Yes
MIN/MAX
Yes
Auto power off
Yes
Number of battery
1
Battery life
30 h
Headphone jack
12.2 mm
Dimensions (LxWxH)
35.5 x 28.5 x 8.5 cm
Weight
1.2 kg
Shipping dimensions (LxWxH)
36 x 29 x 10 cm
Shipping weight
1.5 kg

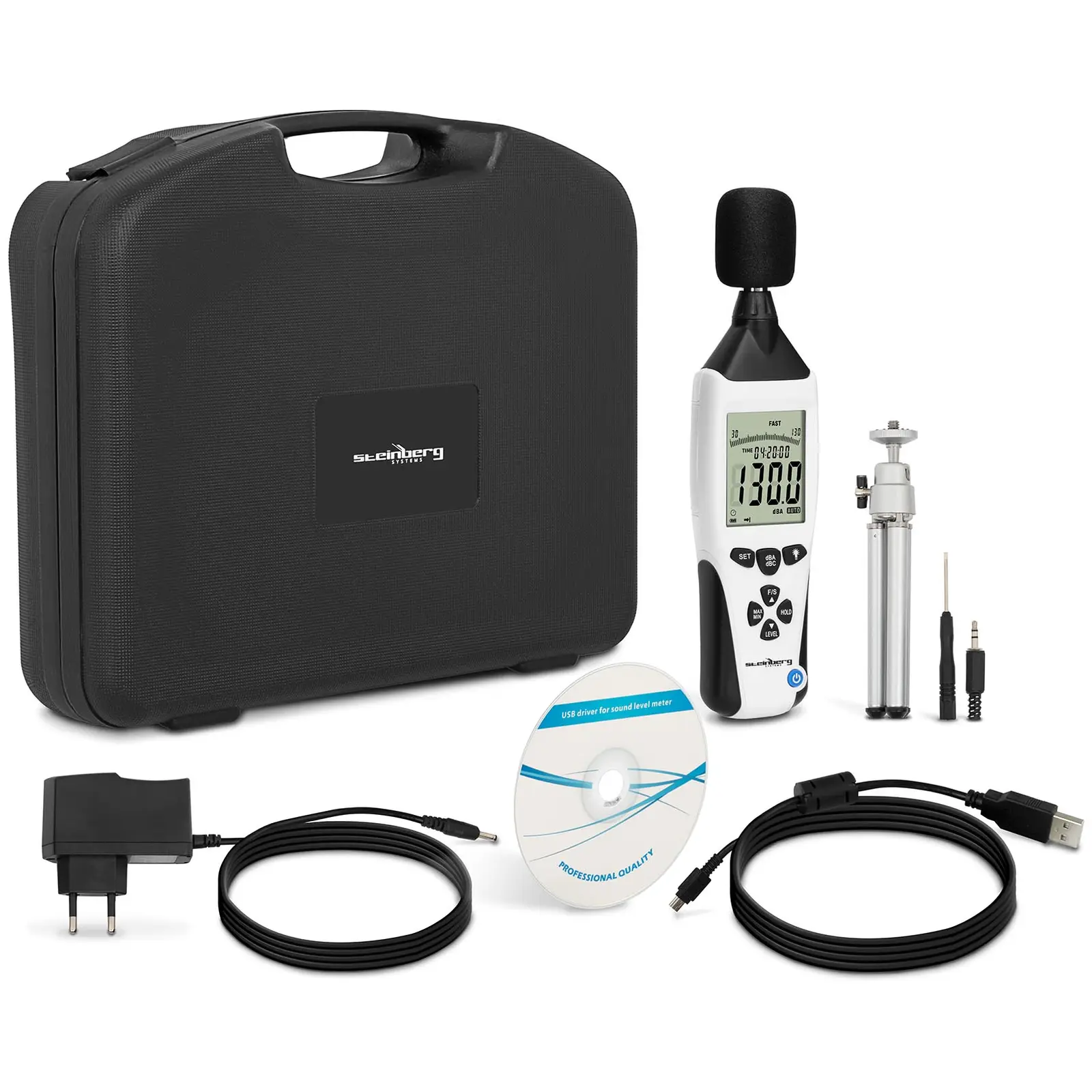

Delivery package
- Sound meter SBS-SM-130C
- Adapter
- Bag
- Tripod
- Windscreen
- 9 V battery
- USB cable
- Software CD
- Instruction manual
Product Description
The professional sound meter - class 2 - for the office or workshop
Everyone reacts differently to noise, however with the sound meter you can determine exactly how loud it is in your office, workshop or on the street. The sound meter registers human-caused sounds as well as noise produced by machines. It can be set for exact measurement results in a variety of conditions and meets general standards.
The digital sound level meter – comfort and reliability
With a measurement range of 30 to 130 dB, the sound level meter was developed to meet the technical standards of IEC 61672: Type 2. It enables you to draw reliable conclusions about a variety of sound sources, as well as precisely measuring, recording and analysing them.
The sound meter impresses with a measuring accuracy of ± 1.4 dB. This makes it possible to classify the collected values accurately, whether for road noise or for noise generated by machines. In order to ensure precision, you can preselect one of three measuring ranges: light (30 - 80 dB), medium (50 - 100 dB) and high (80 - 130 dB). If you aren't sure which range is the right one, you can use the automatic range to cover the entire measuring range.
The sound meter effectively recognises a frequency range of 31.5 Hz to 8 kHz, meaning it can also measure frequencies that are not audible to the human ear. The meter has selectable frequency weightings for optimum measurement results: Frequency weighting A is ideal for ambient noises in for example an office, while in frequency weighting C the device registers sound sources originating from machines.
The Fast and Slow functions enable you to better measure and describe the dynamic of the recorded sound sources. In Fast mode, the device measures with a speed of 125 ms, thereby recording rapid changes in sound pressure better than in Slow mode, in which measurements are taken every second to show a more continuous sound level. The maximum recording time depends on the sampling time. At 125 ms, it is a maximum of 9 h. At a sampling rate of 1 s, the maximum recording time is about 72 h.
Collect data about volume with the mobile decibel meter
All of these settings can be easily selected using just a few buttons. The collected data is shown on the four-digit LCD display to within one decimal point so you can check it immediately. The collected data can also be saved and transferred to a computer via a USB connection for further analysis. To do this, use the software "Sound Level Meter Data Logger", which is compatible with WIN 7 and 10.
The sound meter is powered by a 9 V battery and has a maximum operating time of 30 h per fully-charged battery. The volume meter offers enough memory for up to 262,100 measurements. The microphone is equipped with a windscreen for optimum results, even outdoors. The tripod proves to be extremely practical, especially for longer recordings.
Ratings & reviews
Ratings & reviews
4.7
Based on 7 reviews
Sort by :
Old driver on CD. After installing the software, under Devices and Printer, find the Silicon Labs CP210x USB to UART device. Select device Properties/Hardware/Properties/Change settings/Driver and update the driver. The latest driver can be downloaded from https://www.silabs.com/developers/usb-to-uart-bridge-vcp-drivers?tab=downloads#software.
Show original review
Really good noise meters. Delivers up to ug.
Show original review
The decibel meter works excellently in itself, is very sensitive and shows even the smallest background sounds. A small foot also works great. Not the meter itself, I'm very satisfied. Instead, I couldn't get the table to be installed on the computer to work. First of all, it was on cd, and my laptop no longer has a cd drive. I installed the drivers myself from the Internet. On the neighbor's computer, I transferred the table files (installer) to an external hard drive and installed on my own computer. Looked good but didn't work. Turned out it was for Windows 7 and I have Windows 10. No fixes have helped. So the whole device is now left as a torso - I can't save the readings anywhere, as was intended. I am really disappointed! Best regards, Kristiina Vesamaa
Reply from
Thank you for the information. We are here to help and prevent this from happening again, but we need your support to make it happen. Please let us know if your issue is resolved or if we can provide additional assistance. Together we will surely succeed.
Show original review
No comment provided.
Show original review
Professional very good for the moment to follow
Show original review
Works as promised. With this experience (2 weeks) I dare to recommend it.
Show original review
In my opinion, the measuring device has a good price-performance ratio, but the operating instructions are unfortunately poor and nothing detailed can be found online. I also couldn't find any instructions for the included software - not even a download, so I had to use an old computer with a CD drive - who still knows that? ;-) Otherwise it would have gotten full marks.
Show original review
Frequently asked questions
What accuracy class does the sound meter have?
The instrument is developed to meet the requirements of noise class 2 according to IEC 61672: Type 2 and is ideally suited to measuring the noise level in workplaces.
For reference, what are the noise levels of some common items?
The ticking of a clock: 20 dB; office: 50 dB; hoover: 75 dB; chain saw: 105 dB; lawn mower: 80 dB; aircraft on landing: 120 dB.
