Item: EX10280609
|Model: WIE-SC-100
Screw Conveyor - 1.4 m - up to 1000 kg/h - 1400 rpm - carbon steel
€1,849.00
Qty
Discount
Per item
3+
4%
€1,775.04
5+
8%
€1,701.08
10+
12%
€1,627.12
Key features
- Efficient material transport – screw conveyor with a wide hopper for large volumes of bulk material
- Adjustable conveyor output – control the feed amount by adjusting the chute opening size
- Compact design – the screw conveyor is ideal for tight spaces thanks to its small footprint
- Adjustable – conveyor spiral with a variable incline for heights of 110, 116, 122, 128, 134, or 140 cm
- Versatile – the screw conveyor transports pellets, wood chips, grain, and similar bulk materials
Delivery details
Returns and warranty
Downloads
Technical details
Frequency [Hz]
50
Power supply type
Mains
Size
Feeding chute: 54 x 54 x 44 cm
Discharge chute: ⌀ 170mm
Material
Carbon steel
Colour
Grey
Voltage [V]
400
IP protection class
IP55
Wheel size [mm]
35 x 150 / 45 x 80
Production [kg/h]
80 - 1000
Rotational speed [rpm]
1400
Plug
5-pin
Power [W]
2200
Diameter pipe [mm]
220
Adjustable height
110 - 140 cm
Insulation class
F
IEC protection class
I
Thickness of tube material [mm]
3
Duty cycle of a device
S1 (continuous operation)
Power cord
3 m
Pipe length
2 m
Diameter spiral
190 mm
Wheels
Yes
Emergency stop
Yes
Overload protection
Yes
Dimensions (LxWxH)
203 x 70.5 x 203 cm
Weight
127.5 kg
Shipping dimensions (LxWxH)
60 x 228 x 81 cm
Shipping weight
166 kg
Delivery package
- Screw Conveyor WIE-SC-100
Product Description

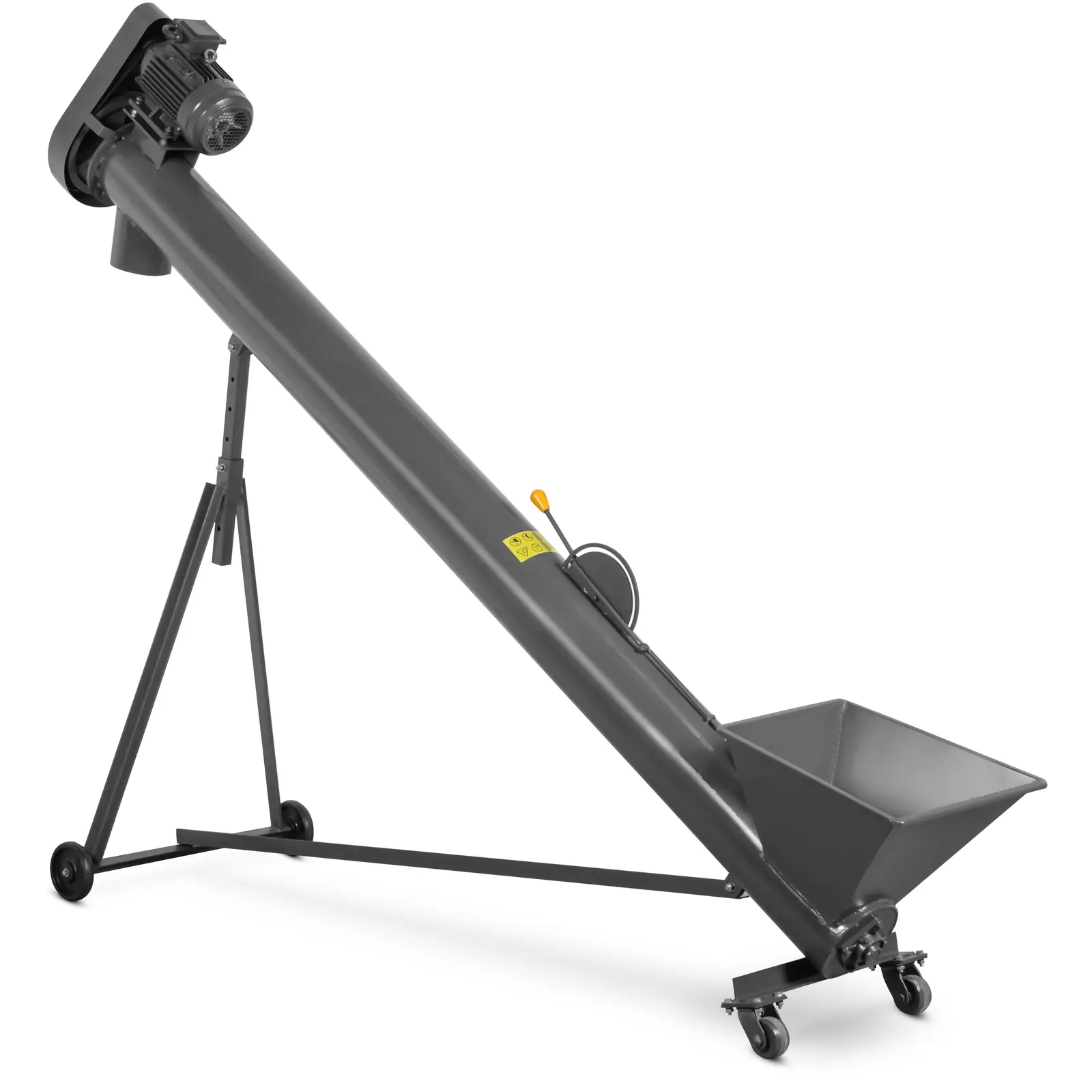

Mobile screw conveyor for pellets and other bulk materials
For grain, wood chips or pellets: the Wiesenfield screw conveyor efficiently transports up to 1000 kg of free-flowing bulk material per hour. The premium pellet conveyor smoothly delivers raw material into a pellet press or other machinery, handling height differences up to 1.4 m. The screw conveyor is particularly well-suited for tight spaces due to its efficient performance and compact size. The appliance is mounted on a robust frame with four wheels so that you can easily push it to the place of use.
Carbon steel conveyor with large feed hopper
You control the different conveying heights by positioning the spiral conveyor at various incline angles. This allows you to adjust for heights of 110, 116, 122, 128, 134, or 140 cm. At 54 x 54 x 44 cm, the feed hopper is especially spacious, facilitating swift and efficient material intake. Regulate the feed volume by modifying the opening size of the chute. An adjustable sieve catches larger particles such as bark and twigs and thus supports the uninterrupted transport of your bulk material. The integrated mixing hopper in the screw conveyor keeps grain and other materials loose, preventing blockages. The model is constructed from 3 mm thick carbon steel, making it highly durable and robust. This reduces appliance maintenance and minimises business downtime.
