(2) Reviews

Item: EX10021429

|

Model: ENTRIX 220M

TIG AC DC Welder - TIG AC/DC - 200 A - duty cycle 60 % - digital - LED - pulse

€619.00
Price includes 23% VAT.
Qty
Discount
Per item
3+
5%
€588.05
5+
10%
€557.10
10+
15%
€526.15
Back in stock soon
Lowest price guaranteed
Key features
  • Clear – digital control panel with buttons and rotary control for precise welding results
  • Flexible – ideal for steel, stainless steel, copper, and even aluminium due to the TIG AC and pulse functions
  • Practical – memory function saves previously set values
  • Modern – IGBT inverter with 2T/4T function and high-frequency ignition
  • Effective – MMA welding with hot start and arc force
Delivery details
Returns and warranty

Luís cruz last month

Super soft

I wasn't expecting the quality that this machine has, super smooth welding both aluminum and stainless steel, I'll definitely buy another one just like it. Very good, I recommend it.

BLACK FRIDAY ENDS IN

0
d
:
0
h
:
0
min
:
0
s

Similar categories

Technical details

Ignition TIG
HF
Voltage [V]
220
IP protection class
IP21S
Input power [kVA]
5.4
Power factor
0.73
MMA welding current [A]
30-200
Max. input power [kVA]
9.6
Norm Compliance
EN60974-1
Max. input current [A]
TIG: 28: MMA: 43
Current balance (AC)
10 - 90
Max welding current [A]
200
Rated Input current [A]
TIG: 17; MMA: 27
Pulse frequency (AC-Mode) [Hz]
0.5 - 200
Pulse frequency (DC-Mode) [Hz]
0.5 - 200
2T / 4T
Yes
ARC-Force
Yes
Hot Start
Yes
Pulse function
Yes
Duty cycle [%]
60
TIG cable
4 m
MMA cable
3 m
Down slope time
25 s
Ground cable
3 m
Dimensions (LxWxH)
46 x 22 x 39 cm
Weight
19.3 kg
Shipping dimensions (LxWxH)
58 x 34 x 49 cm
Shipping weight
21.1 kg

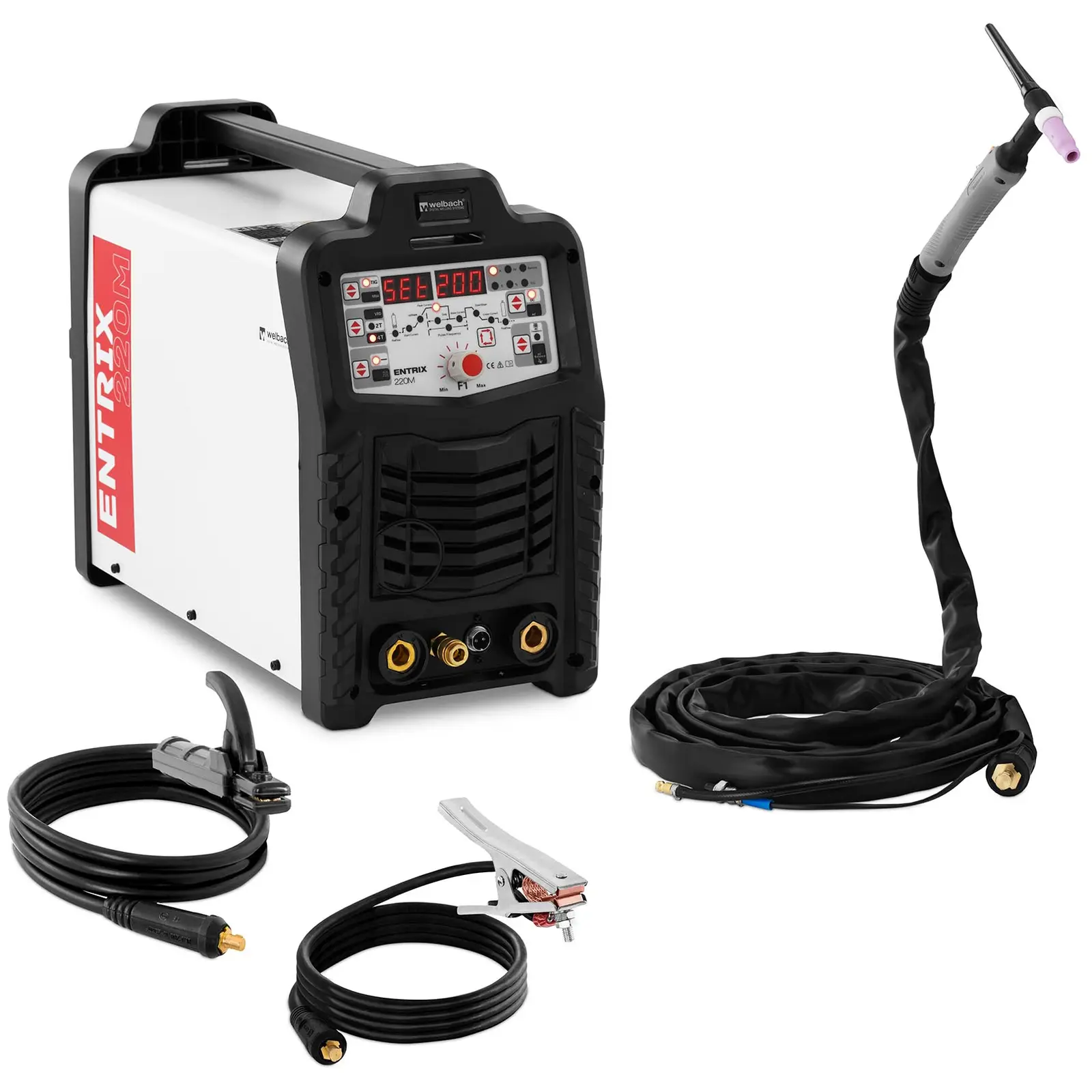

Delivery package

  • TIG Welder ENTRIX 220M
  • TIG welding torch WP26 with hose package (4 m)
  • Earth clamp with cable (3 m)
  • Electrode holder with cable (3 m)
  • Instruction manual

Product Description

The aluminium welder with IGBT technology delivers top performance

Use this versatile welder for aluminium, steel, stainless steel, or copper, with both AC and DC current, and for welding thicknesses of 0.5 - 5 mm, as needed for your project. Adjusting parameters and current (up to 200 A) is simple via the easy-to-use control panel. The control dial and buttons make adjustments easy; you can easily monitor all values on LED display. This way, you can achieve precise, show-stopping welds every time!

Enhanced welding versatility with the AC DC welder.

The modern IGBT inverter allows you to quickly switch between TIG DC, TIG AC, and stick welding methods. Welding with up to 200 A allows you to handle most metals with ease – no matter the circumstances. Use the pulse function for optimum welding results. Dial the pulse frequency to 200 Hz for arc stability under any circumstances. Adjust the pulse function parameters, like starting, base, and end current, then use the control dial to make finely tuned adjustments depending on the workpiece.

The ergonomically designed welding torch allows you to work from any angle – vertical, horizontal, or overhead – while achieving high-quality welds with minimal sparks or splatter. The state-of-the-art IGBT inverter allows you to easily switch all parameters, whether it's switching from AC to DC or selecting 2-stroke or 4-stroke operation. High-frequency ignition ensures a reliable arc start.

MMA welder with Hot Start and Arc Force

For arc welding, use the supplied electrode holder for electrodes with a diameter of 1.6 - 4 mm. Best results up to 200 A are achieved with the hot start and Arc-Force functions. The hot-start function provides a brief increase in welding current at the start, ensuring stable and clean welding from the outset. With the Arc Force function, you can regulate the arc to suit the material being welded and the desired density of the weld seam.

Do you want to weld outdoors, even in strong winds? Then the manual metal arc welding (MMA) method is what you're after. With a stable current, you can achieve excellent welding results on a variety of metals such as steel, iron, cast iron, nickel, or copper.
