Item: EX10031273
|Model: SBS-PTC-500

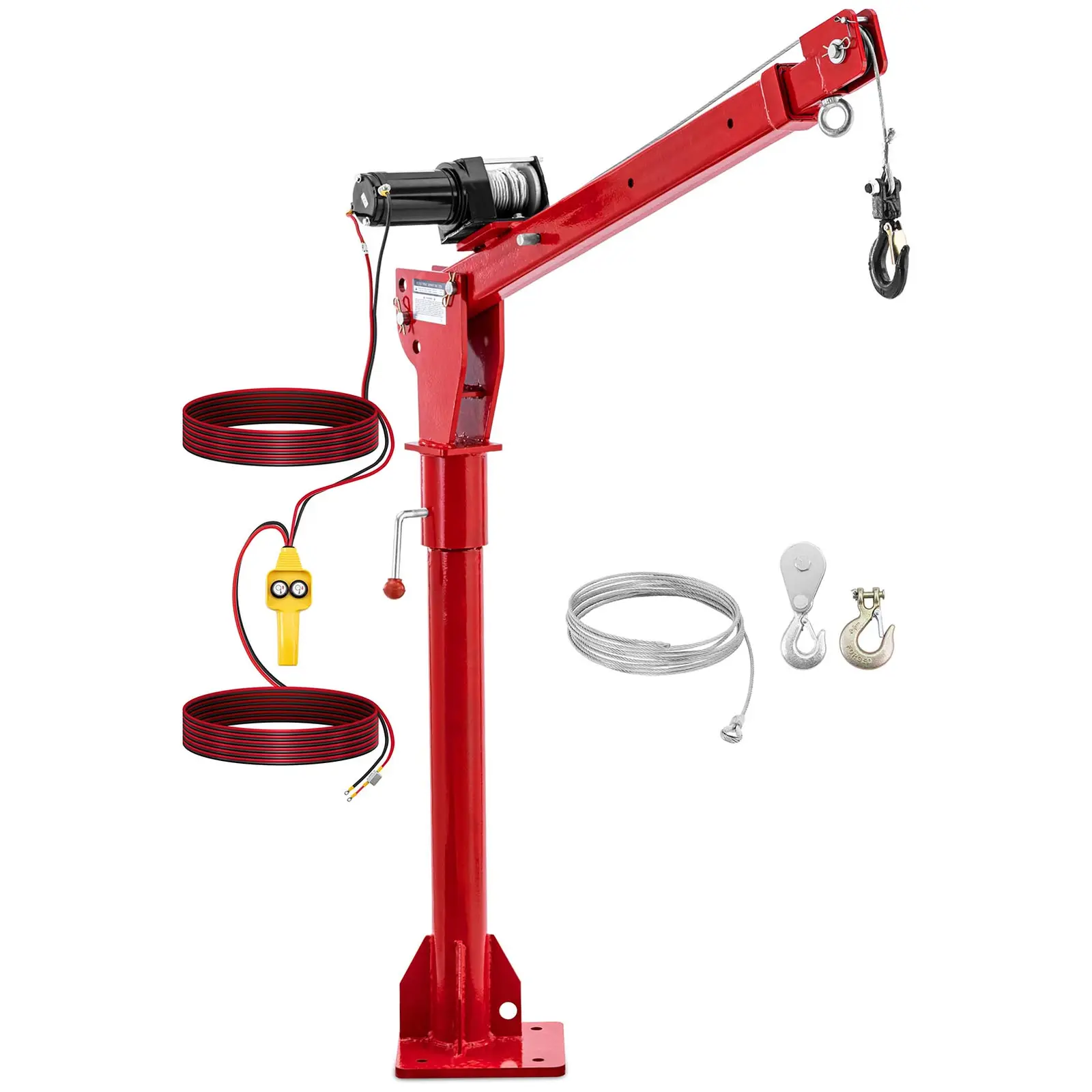

Loading Crane with 12 V winch - 800 kg - 360°
- Powerful – 12 V cable winch lifts loads up to 500 kg, with pulley up to 800 kg
- Stable – is firmly attached to the loading area of a pick-up truck or sprinter via drill holes in the solid base.
- Flexible – lifting arm can be folded out to a reach of 149 cm, can be rotated 360
- Fast – lifts objects with a speed of 3.6 m/min up to a maximum height of 1.94 m
- Stable – loadable rope with a thickness of 4.8 mm and a maximum length of 4.5 m
No electrical instructions I scanned the QR code and it's not available 😕
BLACK FRIDAY ENDS IN
Similar categories
Technical details
Delivery package
- Crane SBS-PTC-500
Product Description
The flexible loading crane for your loading area or workshop
Thanks to the mobile crane with winch, you can load and unload effortlessly
Mount the pick-up crane with the 250x250 mm stand on the loading area, for this you will find four mounting holes in the metal plate. Fold out the lifting arm to achieve a maximum reach of 149 cm. Shorten the lifting arm in two steps to 128 cm, increase the load capacity up to 500 kg, with pulley even up to 800 g. To swivel the lifting arm, loosen the lever and lock it firmly again if necessary. You can move the crane's ball-bearing head precisely in any situation.
A winch is mounted on the lifting arm of the crane, which operates with 12 V DC and reaches 1000 W. This way you can achieve a 3.6 m/min lifting speed for the rope. The rope with a 4.8 mm diameter safely holds any load up to 800 kg that you attach to the hook. The 4.5 m long steel cable is designed for a lifting height of up to 1.94 m.
The pick-up crane with cable winch not only fits onto open loading areas, you can also integrate it effortlessly into your Sprinter or high van to speed up loading and unloading. Or use the loading crane in your workshop to move heavy loads safely.
Ratings & reviews
Ratings & reviews
Based on 6 reviews
No comment provided.
No electrical instructions I scanned the QR code and it's not available 😕
Very good product and winch engine. The downside is the mounting base - it seems that it could be slightly larger for 500 KG. I pulled 316 KG max with it and there was no problem - it was effortless.
Very practical and shipping very quickly Thank you
The fastest shipping, I almost ordered it, and in a moment I had it at home. It was a pleasure to unpack - well protected, no worries about damage. As for the device itself, its big advantage is its pulling power and stability. After proper protection, you really don't have to worry about durability. Well-prepared instructions, everything well described, very simple assembly - I managed it without any problems. To sum up - it seems to be of very good quality and looks well made, so I hope it will work for a long time. I recommend.
Mounted on the back of my 3t5 truck, it allows me to deliver my 500kg pallets without forcing. Easy wiring and assembly. The floor plate is not very big, I reinforced it with a 40x40cm steel plate for more stability.
