Factory Seconds
Item: EX10030429
|Model: SBS-RT-1000

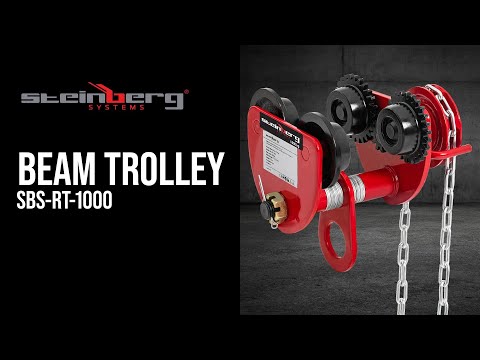

Beam Trolley - 1,000 kg - flange width range 77 - 133 mm - with chain
€79.00
Qty
Discount
Per item
3+
4%
€75.84
5+
8%
€72.68
10+
12%
€69.52
Key features
- Resilient—with a load capacity of up to 1.000 kg
- Safe—with a safety factor of 1.25, the beam trolley meets the highest standards
- Robust—the durable beam trolley is made of high-quality materials and has a sturdy construction; all delicate components are made of alloyed steel
- Flexible—the flange width can be adjusted between 77 and 133 mm
- Simple—the beam trolley is easy to assemble and operate by hand
Delivery details
Returns and warranty
Downloads
Super vyrobok
Crane cat very suitable for flat roofs, lifting is great.
BLACK FRIDAY ENDS IN
0
d
:
0
h
:
0
min
:
0
s
Technical details
Material
Steel
Colour
Red
Safety factor
1.25 Of Max Capacity
Range of adjustment [mm]
77 - 133
Chain length
3000 mm
Max lifting capacity
1000 kg
Dimensions (LxWxH)
27 x 20.5 x 23.5 cm
Weight
9.75 kg
Shipping dimensions (LxWxH)
28 x 17 x 21 cm
Shipping weight
10.6 kg
Delivery package
- Beam trolley SBS-RT-1000
Product Description
Heavy loads easily manoeuvred: The reliable beam trolley from Steinberg Systems
The beam trolley from Steinberg Systems enables you to easily move heavy loads up to 1,000 kg from point A to point B. The durable manual trolley is ideal for professional use in factories, industry, recycling centres and shipyards—anywhere that heavy loads have to be moved.
The long-lasting crane trolley from our professional tools collection
With its long-lasting steel and alloyed steel construction for all critical components, the beam trolley is a reliable and durable assistant when it comes to heavy loads. A coating protects the girder trolley from corrosion and also increases the service life of the product.
Due to the safety factor of 1.25 (based on the maximum capacity), the push-beam trolley meets the highest standards and ensure a smooth and injury-free workflow. The four alloyed steel rollers make the work easy. The double-roller system is designed to work equally well on straight and tapered beams or curved rails.
The flexible flange width range of 77 - 133 mm enables you to quickly and easily mount the hand-geared trolley on various beams of the appropriate width. The beam trolley can be installed in almost no time and makes moving heavy loads quick, easy and efficient. The included chain also simplifies operation.
Ratings & reviews
Ratings & reviews
4.9
Based on 7 reviews
Sort by :
Crane cat very suitable for flat roofs, lifting is great.
Product corresponds to the description - problem-free processing from ordering to delivery - recommended.
Show original review
Runs like clockwork.
Show original review
Very satisfactory in all respects!
Show original review
Very good product easy to install the documentation is well done as I tinker a lot and have back pain it's a real pleasure
Show original review
Practical product, both for assembly (adapts to all types of rail. I bought it in addition to a simple trolley, without moving. I recommend this trolley because it is good value for money.??
Show original review
Once assembled you notice that everything is a little too loose, it could be improved with a precise turned pin, in order to eliminate air between the various thicknesses and the passage holes, the chain can come out of its seat easily, nothing that with a few modifications would not be possible can be fixed, but being new I would have expected a little more, I will have the opportunity to test the precision of the movement, it seems very fast in moving, I hope it is precise, the quality for the price seems adequate to me, good indeed
Show original review
Frequently asked questions
What is the beam trolley's maximum capacity?
The maximum capacity for this model is 1,000 kg.
What is the safety factor of this beam trolley?
The safety factor is 1.25 for the respective maximum load capacity. This results in a value of 635 kg with a maximum load of 500 kg, 1,250 kg with a maximum load of 1,000 kg and 2,500 with a maximum load of 2,000 kg.
