Factory Seconds
Item: EX10030468
|Model: SBS-LIS-32/40
Automatic Level - with tripod and level staff - 32x magnification - 40 mm lens - deviation 1 mm - air damped compensator
€219.00
Qty
Discount
Per item
3+
5%
€208.05
5+
10%
€197.10
10+
15%
€186.15
Key features
- Get started immediately—in addition to the automatic level and storage case, the set also comes with a level staff and tripod
- Precise—the standard deviation is only 1 mm
- High-quality—the instrument impresses with 32x magnification and a 40 mm lens
- Self-levelling—the air damped compensator automatically levels the target line even at close distances (0.3 m)
- Simple—included spirit level enables you to quickly and easily adjust the automatic level
Accessories
Delivery details
Returns and warranty
Downloads
Super
I am perfectly satisfied with the product.
BLACK FRIDAY ENDS IN
0
d
:
0
h
:
0
min
:
0
s
Similar categories
Technical details
Material
Aluminium
Plastic
Erect
Scale
cm/mm
Tripod diameter [mm]
45 - 120
Compensator
Air
Compensator Range
±15’
Magnification
32x
Compensator Accuracy
±0.5”
Field of view (txt)
1°20’
Height adjustment [cm]
105 - 165
Sensitivity of Bubble
8'/2 mm
Minimum focus
0.3 m
Standard Deviation
1 mm
Compensator Setting
3 s
Dimensions (LxWxH)
286 x 286 x 180 cm
Weight
6.46 kg
Shipping dimensions (LxWxH)
128 x 25 x 21 cm
Shipping weight
8.4 kg

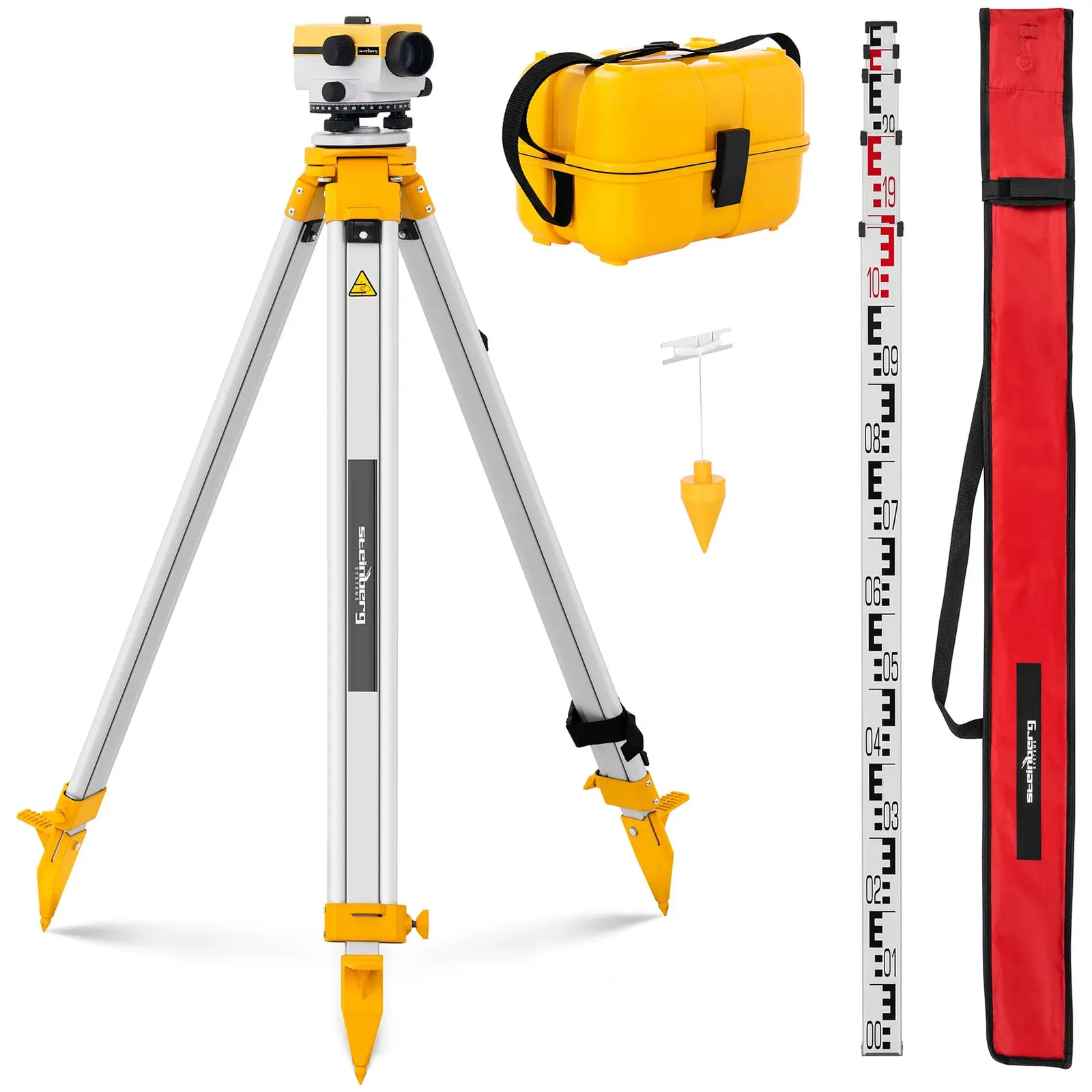

Delivery package
- Automatic level SBS-LIS-32/40
- Carrying case
- Tripod SBS-LT-1650
- Level staff SBS-NL-5 with spirit level and storage bag
- Plumb line
- Instruction manual
Product Description
Automatic level with aluminium tripod and level staff
Whether you're working on building sites, making detailed maps or surveying, the automatic level from Steinberg Systems enables you to comfortably perform measurements and precisely determine height differences. With the automatic level, you can precisely level surfaces, exactly orient devices and machines, and determine gradients for watercourses. This levelling set comes with everything you need to take measurements, including an aluminium survey tripod and a folding levelling rod.
The dumpy level from Steinberg: Professional measuring equipment at a low price
In addition to its accuracy—it has a maximum deviation of 1 mm—the builder's level stands out for its durability. Both the level tripod and the survey staff are made of lightweight-yet-resilient aluminium. The instrument's housing is made of sturdy plastic.
The 40 mm lens and 32x magnification provide a high measuring range. You can precisely align the surveyor's level using a horizontal crosshair and focus it using the practical focus knob—the minimum distance is just 0.3 m. An air damped compensator automatically levels the device and makes it easier to take measurements in the presence of vibrations, for example when working in the vicinity of heavy machinery. The included circular level allows you to level the levelling instrument with stand.
Get started straight away: Set includes a tripod and level staff
The included tripod provides a secure base for precision instruments of all kinds. The aluminium accessory is easy to transport and precisely adjust thanks to its extendable legs. The flat tripod head has a total diameter of 120 mm and an opening measuring 45 mm in diameter so you can securely and easily attach your measuring device. You can steplessly adjust the length of the tripod's three legs between 105 and 165 cm and fix them in the desired position using wing nuts. Delivery also includes a comfortable strap for easy transport.
The level staff serves as a scale for recording height differences. At 5 m long, the survey staff offers a generously dimensioned scale. The two scales on the front and back are divided into millimetres and centimetres as an E-scale. The level staff has five separate segments of 1.23 m each which can be folded up and stowed in the sturdy bag with velcro closure and shoulder strap for transport or when not in use. The set also comes with a spirit level for achieving vertical alignment of the level staff.
Accessories
Ratings & reviews
Ratings & reviews
4.7
Based on 10 reviews
Sort by :
I am perfectly satisfied with the product.
Show original review
This device suits me and meets my requirements because I have worked more or less 30 years with the same device and I have always been satisfied with it.
Show original review
Delivered very quickly. Package was very well packaged with no damage.
Show original review
Very good workmanship, easy to use.
Show original review
Good product at a good price,
Show original review
The optical level kit is really convenient and accurate. The only flaw was the bubble level that mounts on the staff, which was not perfectly tight on the support. But it was enough to tighten the 3 screws up to the stop of the bubble on the support.
Show original review
No comment provided.
Show original review
Delivery was quick and uncomplicated. The device works as it should. Unfortunately, there is no way to lock the stabilizer. You can hear the stabilizer banging during transport.
Show original review
very good, reliable and robust product. the tripod is really very stable and the measurement is of good quality with a very good zoom. Customer service is attentive and very commercial to ensure your satisfaction.
Show original review
This product will be used in a non-profit association called: L`OUTIL EN MAIN. This association aims to introduce children aged ten to fourteen to the differences in the construction trades, we are several instructors volunteers, and we purchase, with our own financial means, the necessary tools.
Show original review
Frequently asked questions
Is this an automatic, i.e., self-levelling, dumpy level?
Yes, the built-in compensator automatically levels the target line even at a close distance.
How accurate is this device?
The device is highly accurate, with a deviation of just 1 mm.
Is this measuring equipment easy to transport?
Yes, the tripod has a strap for quick and easy transport; the level itself is compact and lightweight.
