Factory Seconds
Item: EX18000652
|Model: S-MMA 160H-SET-1
Welding set - Electrode welder - 160 A - welding helmet X-Basic - stick electrode basic Ø 2.5 x 350 mm - 5 kg
Key features
- Precise – Electrode welder with rotary control, LED display and modern IGBT inverter for optimum welding parameters
- Effective – welding current from 20 to 160 A and a duty cycle from 100 % to 110 A
- Functions – clean welding results thanks to Hot Start, Arc Force and Anti-Stick
- See-through – large, 100 x 60 mm coloured view
- Precise – 2.5 x 350 mm electrodes in 5 - kg packaging
Delivery details
Returns and warranty
Downloads
Technical details
View type
Full color
Material
PA
Steel
Iron
Alloy type
Basic electrode
Lagging type
Basic electrode
Electrode size [mm]
2.5 x 350
Classification
ISO 2560-А-E 42 4 В 4 2 Н5 | AWS A5.1: E7018
Efficiency [%]
85%
Field of view [mm]
100 x 60
Duty cycle for 40°C [%]
45
Angle adjustable [°]
120
Chemical composition [%]
C 0.08 | Si 0.40 | Mn 1.10
Input power [kVA]
8
Power factor
0.75
Shade control
Fully automatic
Max. input power [kVA]
8
Insulation class
H
Max. input current [A]
25
UV/IR protection
Up to DIN 16
Bright mode range
DIN 4 / DIN 5 - 9
Max welding current [A]
160
Min welding current [A]
20
Rated Input current [A]
20
Storage temperature [°C]
-20 to 70
Filter cartridge size [mm]
133 × 114 × 10
Switching time / Shifting time [s]
1/25000
Delay time [s]
0,2 - 1,0
Details of electricity supply
Solar cells and replaceable lithium battery (1 × CR2450)
Shade mode range / light protection
DIN 4 / 5 - 8 / 9 - 13
AC
Yes
DC+
Yes
ARC-Force
Yes
Anti Stick
Yes
Hot Start
Yes
Grind mode
Yes
Arc sensors
4
Homogeneity
1
Optical class
1
Angle dependency
2
Scattered light
1
Dimensions (LxWxH)
0 x 0 x 0 cm
Weight
0 kg
Shipping dimensions (LxWxH)
0 x 0 x 0 cm
Shipping weight
0 kg

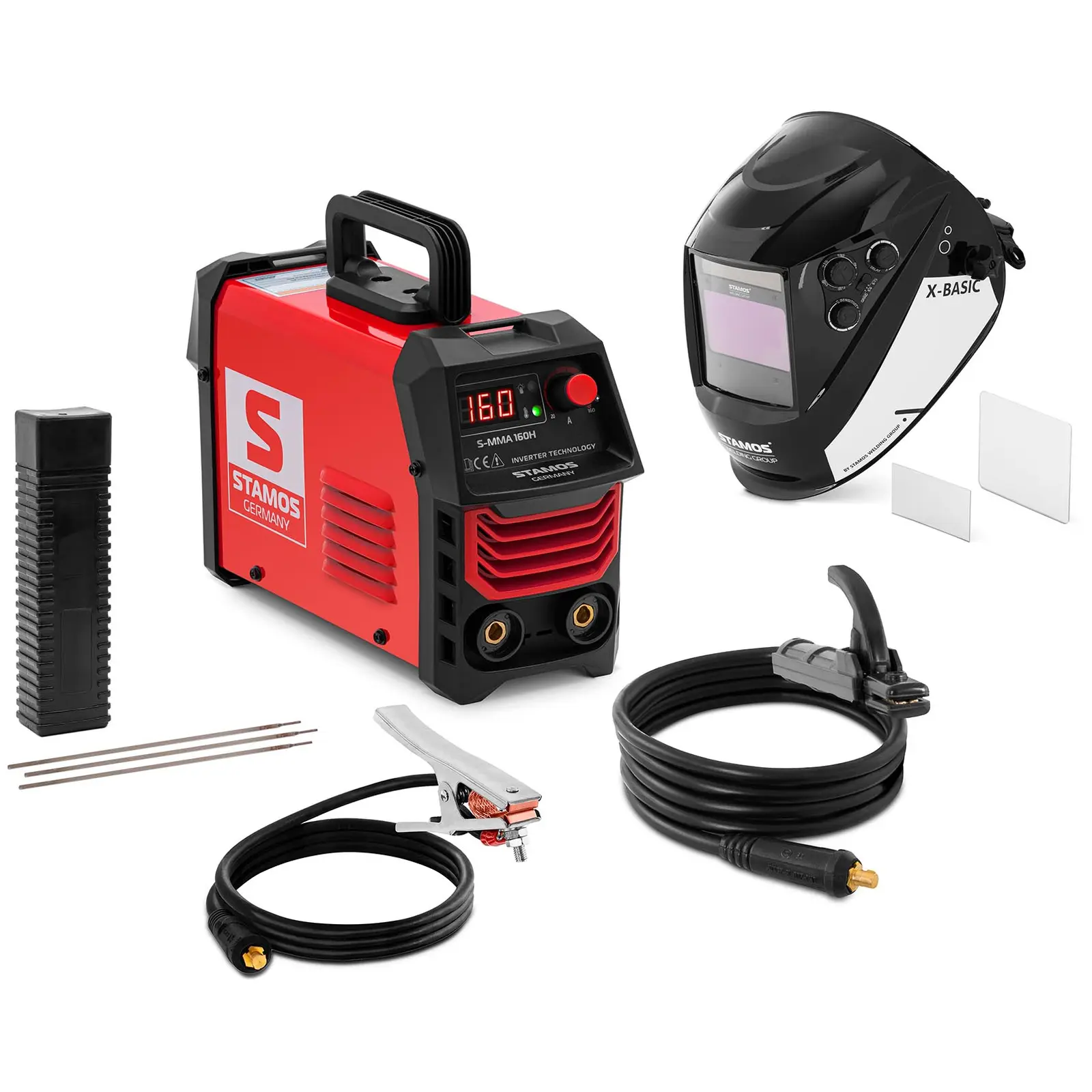

Delivery package
- Electrode welder S-MMA 160H
- Electrode holder with cable (1.8 m)
- Mass cable (1.2 m)
- Power cable (2 m)
- Welding helmet X-BASIC
- Protective bag
- Set of protective lenses (inside and outside)
- Stick electrode S-WME-E7018 2.5X350/5.0KG, 5 kg
Product Description
The electrode welder set with welding helmet and stick electrode is ideal for the most diverse welding work
You want a compact electrode welder that you can use in a variety of ways and that impresses you with features such as fast ignition, a stable arc and little welding spatter? Then pick up the hand held MMA welder from Stamos Welding Group! Thanks to the latest technologies and numerous functions, the electrode welder meets all standard work requirements. The X-Basic welding helmet ensures your safety. Thanks to the true colour view, you can see all the details even more precisely. The low-hydrogen iron powder electrode (5 kg included), which has a strong basic coating, convinces with excellent welding properties.
