Welding set - Combination welder - 180 A - MIG/MAG/WIG/MMA/FCAW - Welding helmet - Colour Glass Y-100 - coloured field of vision

1/8

€539.00

Price includes 23% VAT.

Back in stock soon

Lowest price guaranteed

Key features

Powerful – welds MIG/MAG and TIG up to 180 A, and MMA up to 160 A
Variable – wire speed and voltage infinitely variable for MIG/MAG
Clear – easy handling and clear menu navigation with LED display
Indestructible – the TECAMID 66 material compound used is not only flame-repellent, but also dimensionally stable, abrasion-resistant, low-wear and resistant to thermal and chemical influences.
See-through – large, true colour 100 x 80 mm view

Delivery details

Returns and warranty

Downloads

Technical details


€539.00 Welding set - Combination welder - 180 A - MIG/MAG/WIG/MMA/FCAW - Welding helmet - Colour Glass Y-100 - coloured field of vision Currently seen	€1,199.00 Welding set - Combination welder - 200 A - Duty Cycle 60 % - Welding helmet Colour Glass Y-100 - Welding table 150 kg	€139.00 Welding Wire - set of 3 - steel - ER70S-4 - 0.8 mm - 3 x 5 kg	€599.00 Popcorn Machine and Cotton Candy Machine Set - 1,600 W / 1,200 W - sneeze guard	€519.00 Sausage tie - manual - stainless steel - incl. 6 rolls of sausage twine - Royal Catering	€1,079.00 Centrifuge - 6 x 50 ml - RZB 2390 xg - angular rotor 24 x 10 ml and 8 adapters 10 to 5 ml
Dimensions (LxWxH)
0 x 0 x 0 cm	0 x 0 x 0 cm	0 x 0 x 0 cm	0 x 0 x 0 cm	0 x 0 x 0 cm	0 x 0 x 0 cm
Air consumption [l/min]
-	80-160	-	-	-	-
Alloy type
-	-	Carbon-manganese steel (Mn/Si alloy)	-	-	-
Angle adjustable [°]
120	120	-	-	-	-
Angle dependency
2	2	-	-	-	-
Anti Stick
Yes	-	-	-	-	-
Arc sensors
4	4	-	-	-	-
ARC-Force
Yes	-	-	-	-	-
Battery powered
Yes	Yes	-	-	-	-
Bright mode range
DIN 5 - 9	DIN 5 - 9	-	-	-	-
Chemical composition [%]
-	-	Wire: C 0.078 \| Mn 1.46 \| Si 0.85	-	-	-
Classification
-	-	SO 14341-А -G 42 4 М21 3Si1 AWS A5.18: ER70S-4	-	-	-
Colour
Black Blue Silver	-	-	-	Metallic silver	-
Delay time [s]
0,14 - 0,85	0,14 - 0,85	-	-	-	-
Details of electricity supply
Solar cells and replaceable lithium battery (1 × CR2450)	Solar cells and replaceable lithium battery (1 × CR2450)	-	-	-	-
Diameter [mm]
-	-	0.8	-	-	-
Dimensions [cm]
-	-	-	-	-	Ø1.33 x 6.1
Duty cycle [%]
-	60	-	-	-	-
Duty cycle for 40°C [%]
30	-	-	-	-	-
Efficiency [%]
85	80	-	-	-	-
Field of view [mm]
100 x 80	100 x 80	-	-	-	-
Filter cartridge size [mm]
133 x 114 x 10	133 x 114 x 10	-	-	-	-
Flux Cored Wire
Yes	-	-	-	-	-
Gas magnetic valve
No	-	-	-	-	-
Grind mode
Yes	Yes	-	-	-	-
Hole diameter [mm]
-	16	-	-	-	-
Homogeneity
1	1	-	-	-	-
Hot Start
Yes	Yes	-	-	-	-
IEC protection class
IP21S	IP21S	-	-	-	-
Ignition MMA
Pilot ARC	-	-	-	-	-
Ignition Plasma
-	HF	-	-	-	-
Ignition TIG
HF	HF	-	-	-	-
Input power [kVA]
5.5	9.6	-	-	-	-
Insulation class
H	F	-	-	-	-
Material
PA66	Stainless steel Aluminium Carbon steel Steel PA66	Steel	-	Stainless steel Cotton	-
Max weldable thickness [mm]
MMA: 6 \| WIG: 4	0.5-5	-	-	-	-
Max welding current [A]
-	MIG: 200	-	-	-	-
Max. input current [A]
27	CUT:38.9; MMA; 32.9; TIG: 28; MIG:37.4	-	-	-	-
Max. input power [kVA]
5.5	CUT: 8.6; MMA: 9.6; TIG: 6.2; MIG:8.2	-	-	-	-
Max. number of tubes
-	-	-	-	-	24
Min welding current [A]
-	MIG: 40	-	-	-	-
MMA welding current [A]
160	30-160	-	-	-	-
Norm Compliance
-	EN60974-1	-	-	-	-
Optical class
1	1	-	-	-	-
Power factor
0.8	0.73	-	-	-	-
Rated Input current [A]
18.2	CUT: 21.3; MMA: 18; TIG: 15.3; MIG: 20.5	-	-	-	-
Sausage length [cm]
-	-	-	-	2 - 26	-
Shade control
Button	Button	-	-	-	-
Shade mode range / light protection
DIN 4 / 5 - 9 / 9 - 13	DIN 4 / 5 - 9 / 9 - 13	-	-	-	-
Shipping dimensions (LxWxH)
0 x 0 x 0 cm	0 x 0 x 0 cm	0 x 0 x 0 cm	0 x 0 x 0 cm	0 x 0 x 0 cm	0 x 0 x 0 cm
Shipping weight
0 kg	0 kg	0 kg	0 kg	0 kg	0 kg
Storage temperature [°C]
-20 - +70	-20 - +70	-	-	-	-
Switching time / Shifting time [s]
1/25000	1/25000	-	-	-	-
TIG welding current [A]
180	10-200	-	-	-	-
Timer
-	-	-	-	-	Yes
UV/IR protection
Always up to DIN 16	Always up to DIN 16	-	-	-	-
View type
Full color	Full color	-	-	-	-
Water cooling
No	-	-	-	-	-
Weight
0 kg	0 kg	0 kg	0 kg	0 kg	0 kg
Wire diameter [mm]
Ø0.6/0.8/0.9/1.0	0.8/1.0/1.2	-	-	-	-
Wire speed [m/min]
2-13	2-15	-	-	-	-

Compare more attributes

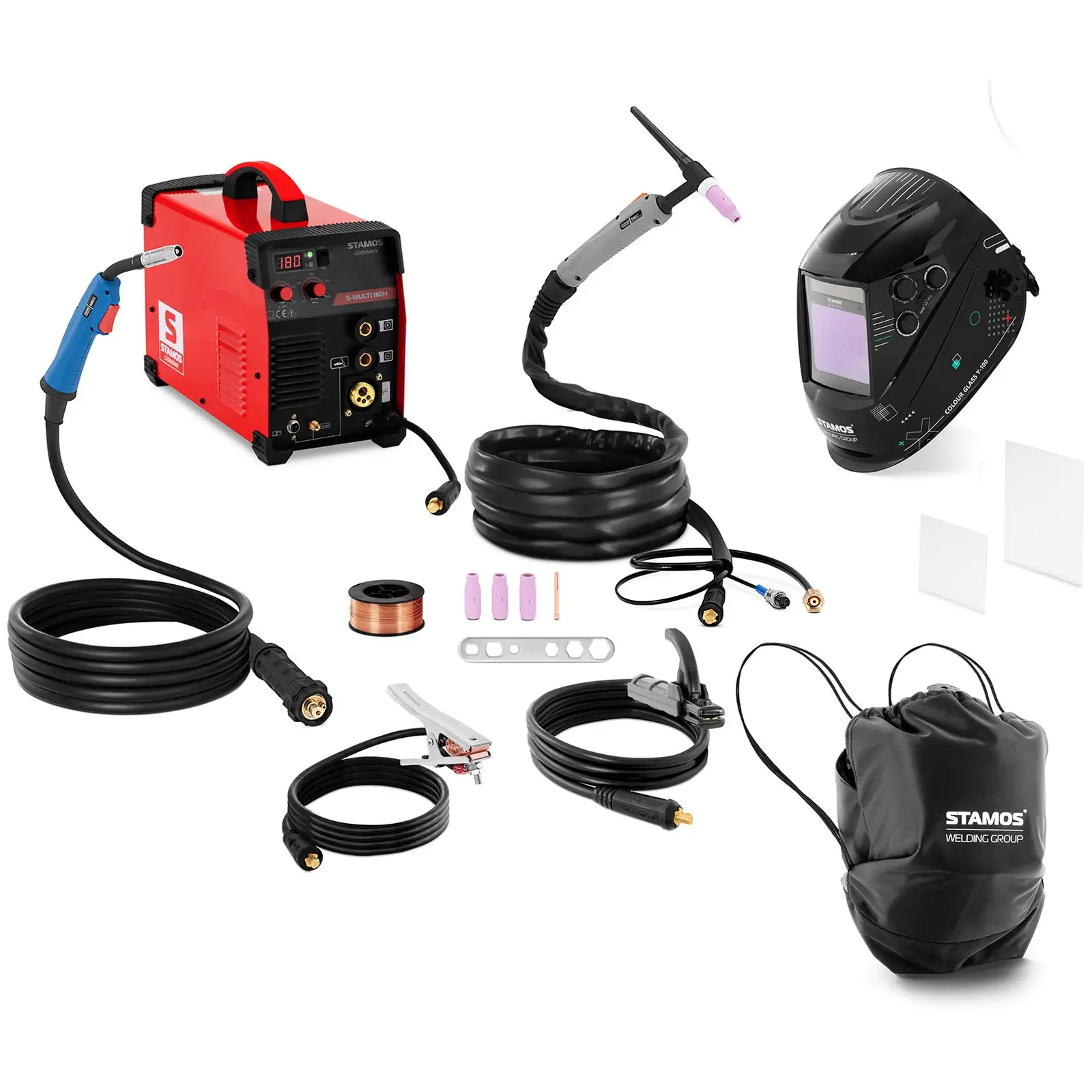

Delivery package

Combi welder S-MULTI 180H
MIG torch with hose package (3,5 m)
TIG torch with hose package (3.5 m)
Electrode holder with cable (1.8 m)
Ground cable (1.5 m)
Voltage transformer socket
Welding helmet COLOUR GLASS Y-100
Protective bag
Set of protective lenses (inside and outside)

Product Description

Flexible and safe! The welding set convinces in every welding situation

You want the flexibility of a combination welder with solid performance values that is easy to operate? Then use the compact 4-in-1 welding machine S-MULTI 180H from Stamos Germany! Whether you weld with MIG/MAG or TIG up to 180 A or use MMA up to 160 A, the combi welder offers the right welding method for every welding situation with and without gas. For your safety, the Colour Glass Y-100 welding helmet is made of the indestructible TECAMID 66 material blend. Thanks to the coloured field of view, you can see all the details even more precisely.
