Factory Seconds
Item: EX10060776
|Model: MSW-TC-1100HA

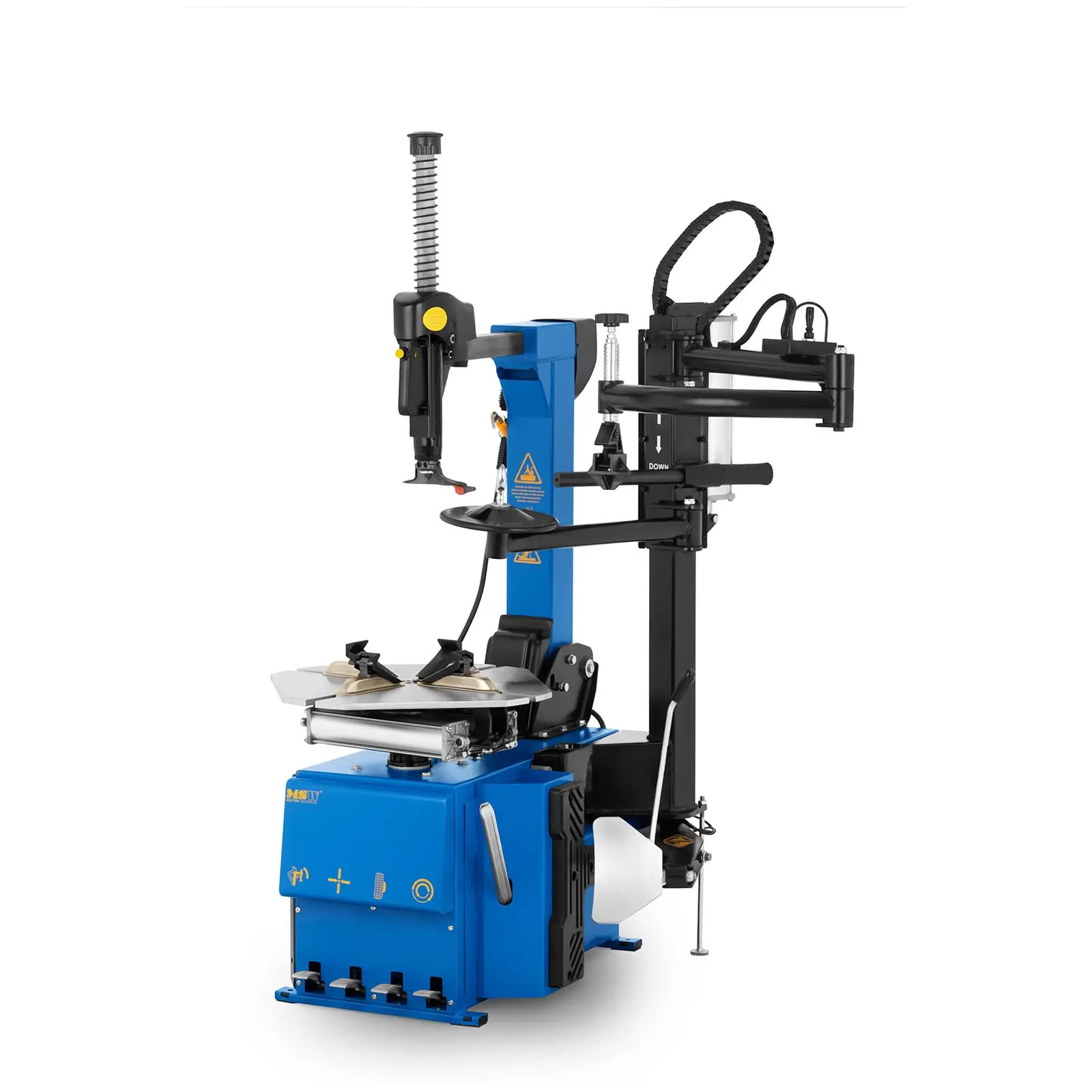

Tyre Changer Machine - 1,100 W - Assist arms - 12 to 24"
€2,499.00
Qty
Discount
Per item
3+
5%
€2,374.05
5+
10%
€2,249.10
10+
15%
€2,124.15
Key features
- More flexibility thanks to tilting column and two gripping arms
- Easy, hands-free operation with foot pedals
- Integrated air pressure gauge
- Self-centring 4-jaw system with an outer rim clamp diameter of 12 - 25" and an inner rim clamp diameter of 12 - 21"
- Effective bead breaker lever with a compressive force of 2,500 kg
- Bidirectionally rotating table with a torque of 1,100 Nm and mounting head with adapted shape
Delivery details
Returns and warranty
Downloads
tire changer
Everything was great, very good value for money
CYBER WEEK ENDS IN
0
d
:
0
h
:
0
min
:
0
s
Similar categories
Technical details
IP protection class
IPX0
Power [W]
1100
Pressure [bar]
8-10
Turntable torque [Nm]
1100
Inner rim diameter [cm]
12''-25''
Input voltage [V]
230
Outer rim diameter [cm]
11''-21''
Max. speed of table rotation [rpm]
9
Sound power
60 dB
Maximum rim separator pressure
2500 kg
Dimensions (LxWxH)
150 x 204 x 188 cm
Weight
281.3 kg
Shipping dimensions (LxWxH)
241 x 182 x 132 cm
Shipping weight
323 kg
Delivery package
- Tyre changer machine MSW-TC-1100HA
- Assist arm 1,100 x 890 x 940 mm
- Assist arm 1,300 x 930 x 350 mm
- Air hose
- Air pressure gauge
- Bead breaker
- Crowbar
- Jaw protectors
- Instruction manual
Product Description
Tyre Changer Machine - 1,100 W - Assist arms - 12 to 24"
The tyre changer machine from MSW enables you to remove a tyre from its rim and replace it with a new tyre without any physical exertion. The machine is operated using foot pedals and levers and is suited for both large and thin tyres. When it comes to releasing wheels from rims, this machine is a proven powerhouse.
The tyre changing machine comes equipped with everything you need to release and replace a tyre. First, you will use a lever to release the tyre from the rim with a bead breaker force of 2,500 kilograms. The working space for the bead breaker is equipped with a protective rubber guard. Then the tyre is placed on the mounting plate.
The column can be tilted forward or backward in order to better position the fitting arm for work with differently-sized rims, a real advantage when working with thin wheels. The machine is also equipped with two adjustable assist arms which hold the rim from above and below to ensure stability when the tyre is being released.
The mounting plate has a self-centring 4-jaw system with additional plastic protective covers. The clamping jaws are fitted for rims with an external diameter of 11 to 21 inches and an internal diameter of 10 to 18 inches on the 54 x 54 centimetre mounting plate.
Place the fitting head between the tyre and the rim. Its shape increases the leverage placed on the tyre when the mounting plate is rotated with a torque of 1,100 Nm. You can control the clamping of the tyre and rotation of the mounting plate using foot pedals, allowing you to work with both hands free. Depending how you position the fitting head, you can use it to both release old tyres and install new ones.
Make sure to deflate the tyre before using the machine to release it from the rim. The newly-installed tyre must then be reinflated before it can be used. You can do the inflating as soon as the replacement is complete, thanks to the device's integrated air pressure gauge.
About the brand
Ratings & reviews
Ratings & reviews
5.0
Based on 5 reviews
Sort by :
Everything was great, very good value for money
Show original review
I ordered the tire changer with auxiliary arm and received it very quickly. Top device at a fair price. I can also recommend the machine to professional garages, it is robust and of top quality.
Show original review
I ordered the tire changer with auxiliary arm and it was delivered very quickly and without complications. I am very happy with it. I assembled and tested it on the same day. I have already changed the tires on my SUV and despite the size of the tires, it was no problem. I am not a professional, but the device is exactly what a beginner like me needs. But the machine would also do well in the professional field, as the quality of the device is very good. It is robust and I also bought motorcycle adapters because I want to use the machine for my cars as well as my motorcycles. The price is good and I will be able to get by with the machine after a few tire changes. I can only recommend the machine. Top device at a fair price.
Show original review
I ordered the tire changer with auxiliary arm. The machine arrived partially disassembled in 2 boxes, undamaged, and with quick, uncomplicated delivery, and was even put in the garage. Top service. The assembly was completed on the same day and was child's play, although you need two people. I changed my tires on my SUV a few days ago and although they are relatively large, it was a piece of cake with the device. The machine seems very robust and reliable and the quality is more than I expected. The machine is therefore recommended for professional and semi-professional use, as it is also very suitable for beginners and can keep up very well in terms of price. I also bought motorcycle adapter jaws and they fit very well. This means I can change the tires on all my vehicles myself and no longer have to go to a professional tire changing garage, and I can also buy my tires myself at a lower price. This means I will be able to recoup the cost of the machine with just a few tire changes, and friends and acquaintances will benefit equally. I can only recommend the device and would buy one again immediately.
Show original review
Great product
Show original review
Frequently asked questions
Can I also use this device on alloy rims?
Yes, but you should place plastic covers on the clamping jaws to avoid damaging the rims.
Can I turn the mounting platform both left and right?
Yes, when you press down on the foot pedal, the platform rotates right, and if you lift up on the pedal, it rotates in the opposite direction, i.e., left.
