(2) Reviews

Item: EX10062187

|

Model: MSW-DDM-2300D

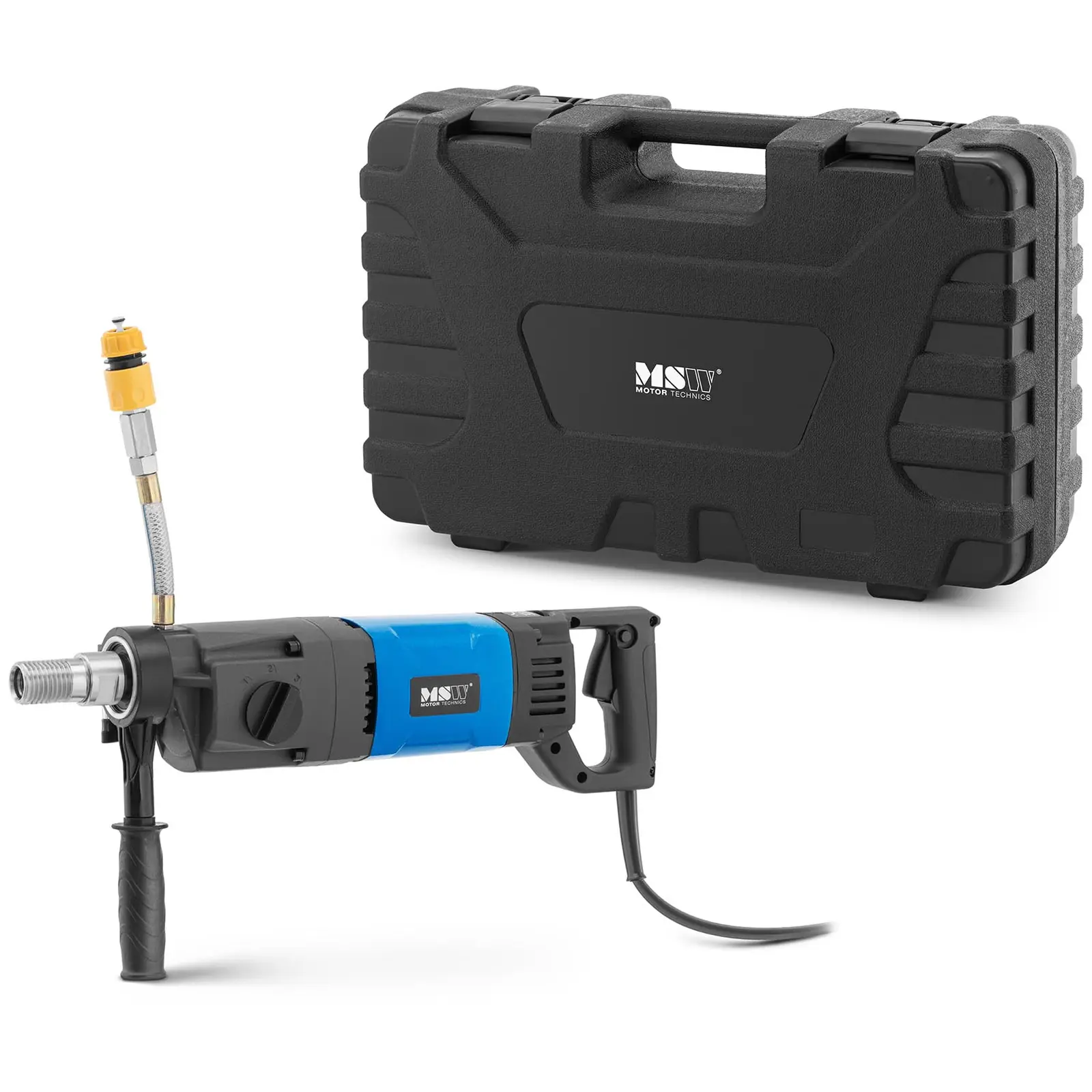

Core Drill - 1900 W - 2100 rpm

On Sale
€319.00 €349.00
Limited time offer Price includes 23% VAT.
Qty
Discount
Per item
3+
5%
€303.05
5+
10%
€287.10
10+
15%
€271.15
Back in stock soon
Lowest price guaranteed
MSW
Key features
  • High-performance – powerful 1900 W motor and carbon brushes
  • Accurate – drill cores up to 100 mm (with stand: 165 mm)
  • Effective – speeds of up to 850 - 1200 / 1980 / 2170 rpm depending on gear
  • Flexible – for both dry and wet drilling
  • Extra safe – PRCD protection is integrated into the cable
Delivery details
Returns and warranty

Norbert 7 months ago

Core drilling machine - 1900 W

It was perfect for the task I bought it for. The delivery went well! I am satisfied with everything!

Technical details

Material
Aluminium
Plastic
Copper
Iron
Voltage [V]
230
Current [A]
11
Power [W]
1900
Drilling diameter in 1/2/3 gear [mm]
20-30/30-60/60-100
Water hose connection diameter [mm]
10
Max. drilling diameter [mm]
105 / 165
Water hose connector diameter [']
0.4
Drilling diameter with stand in 1/2/3 gear [mm]
55 / 105 / 165
Core drill attachment diameter ["]
1 1/4 - 7 UNC & G 1/2
PRCD on cable
Yes
Carry case included
Yes
Core drilling wet/dry method
Yes
Sound power
100.9 dB
Sound pressure level
89.9 dB
Cooling hose length
3.5 m
Dimensions (LxWxH)
55 x 50 x 12 cm
Weight
11.9 kg
Shipping dimensions (LxWxH)
57 x 17 x 37 cm
Shipping weight
13 kg

Delivery package

  • Core Drill MSW-DDM-2300D
  • Instruction manual

Product Description

Reliable, high-performance core drill

On a construction site, time is money. The machines you rely upon should waste neither. The core drilling machine from MSW reliably drills holes in hard construction materials such as concrete, masonry, or asphalt. You can drill holes up to 165 mm in size when using a drill stand (not included).

Drill precise holes with the core drill from MSW!

The 1900 W core drill can reach a maximum speed of 2170 RPM for handheld drilling up to 105 mm in diameter. For best results, use two power levels and the largest drill diameter at the lowest speed. A drill stand (sold separately) increases the precision and allows the use of larger drills up to 165 mm.

When drilling, rely on a dependable water cooling system. A connection is integrated directly into the device. This reduces wear on the drill bit, reduces maintenance requirements for the power tool, and increases overall service life. To service the carbon brushes, simply remove the protective panelling.

Use diamond core drills in various diameters that can be securely attached to the machine. The core drill allows you to bore into reinforced concrete, cement, masonry, asphalt, and natural stone. The 3.5 m long power cable offers you maximum freedom of movement. Thanks to the built-in PRCD in the cable, you can always use the machine safely. Should there be a short circuit in the drill or cable, operation immediately ceases.

Ratings & reviews

5.0

Based on 2 reviews

Sort by :

7 months ago Posted on Expondo Hungary

Core drilling machine - 1900 W

It was perfect for the task I bought it for. The delivery went well! I am satisfied with everything!

Show original review

last year Posted on Expondo Germany

OK

Next day delivery, well protected goods. The fantastic price-quality ratio actually significantly exceeded my expectations. The workmanship is very good.

Show original review
