Factory Seconds
Item: EX18000672
|Model: S-MMA 120H-SET-3
Welding set - Electrode welder - 120 A - welding helmet X-metal - stick electrode Ø 2.5 x 350 mm - 5 kg
Key features
- Precise – Electrode welder with rotary control and LED display
- Effective – welding current from 20 to 120 A and duty cycle from 100 % to 80 A
- Functions – clean welding results thanks to Hot Start, Arc Force and Anti-Stick
- Indestructible - the TECAMID 66 material used for the welding helmet is not only flame-repellent, but also dimensionally stable, abrasion-resistant, low-wear and insensitive to thermal and chemical influences.
- Precise – 2.5 x 350 mm electrodes in 5 - kg packaging
Delivery details
Returns and warranty
Downloads
BLACK FRIDAY ENDS IN
0
d
:
0
h
:
0
min
:
0
s
Similar categories
Technical details
View type
Monochrome
Material
ABS plastic
Iron
Colour
Black
Alloy type
Basic electrode
Lagging type
Basic electrode
Electrode size [mm]
2.5 x 350
Classification
ISO 2560-А-E 42 4 В 4 2 Н5 | AWS A5.1: E7018
Efficiency [%]
85
Field of view [mm]
93 x 43
Duty cycle for 40°C [%]
45
Angle adjustable [°]
135
Chemical composition [%]
C 0.08 | Si 0.40 | Mn 1.10
Input power [kVA]
4
Power factor
0.75
Shade control
DIN 9-13
Max. input power [kVA]
4
Insulation class
H
Max. input current [A]
20
UV/IR protection
Up to DIN 16
Bright mode range
DIN 4
Max welding current [A]
120
Min welding current [A]
20
Rated Input current [A]
10
Storage temperature [°C]
-20 to 70
Filter cartridge size [mm]
110 x 90 x 9
Switching time / Shifting time [s]
< 1/25000
Delay time [s]
0,1 - 1,0
Details of electricity supply
Solar cells and replaceable lithium battery (1 × CR2450)
Shade mode range / light protection
9 - 13/4
AC
Yes
DC+
Yes
ARC-Force
Yes
Anti Stick
Yes
Hot Start
Yes
Grind mode
Yes
Arc sensors
2
Homogeneity
1
Optical class
1
Angle dependency
2
Scattered light
1
Dimensions (LxWxH)
0 x 0 x 0 cm
Weight
0 kg
Shipping dimensions (LxWxH)
0 x 0 x 0 cm
Shipping weight
0 kg

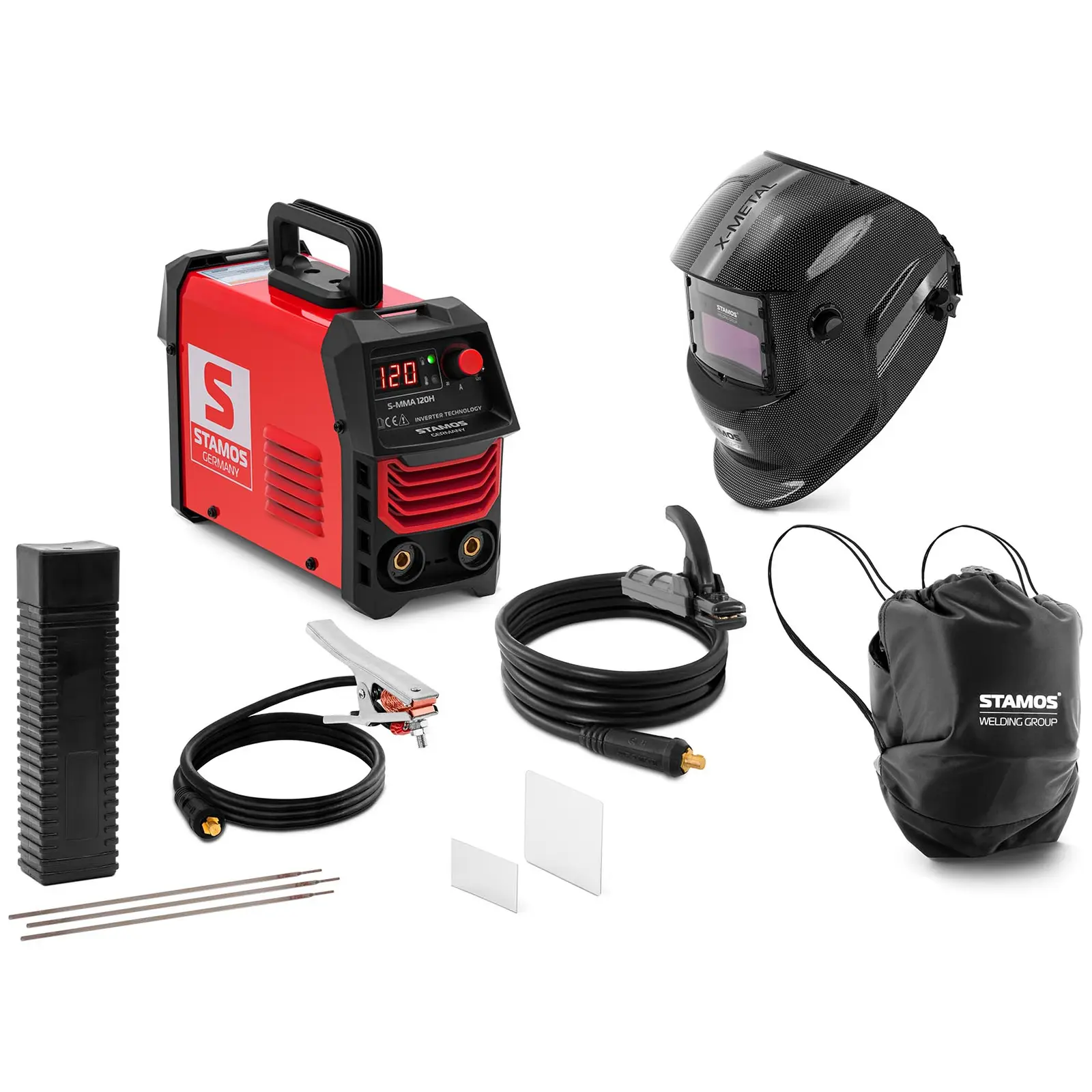

Delivery package
- Electrode welder S-MMA 120H
- Electrode holder with cable (1.8 m)
- Ground cable (1.2 m)
- Power cable (2 m)
- Welding helmet X-METAL
- Protective bag
- Set of protective lenses (inside and outside)
- Stick electrode S-WME-E7018 2.5X350/5.0KG, 5 kg
Product Description
The set consisting of an electrode welder, welding helmet and stick electrode is convincing for a wide range of welding work.
Want a compact MMA welder that you can use in a variety of ways and that impresses you with features such as fast ignition, a stable arc and little welding spatter? Then take the electric hand welder to hand! Thanks to the latest technologies and numerous functions, the electrode welder meets all standard work requirements. Your safety is ensured by the X-metal welding helmet, which is made of the indestructible TECAMID 66 material blend. Thanks to the true colour, you can see all the details even more precisely. Here, the low-hydrogen iron powder electrode (5 kg included), which has a strong basic coating, convinces with excellent welding properties.
This set includes the following products:
