Factory Seconds
Item: EX18000669
|Model: S-MULTI 180H-SET-3
Welding set - Combination welder - 180 A - MIG/MAG/WIG/MMA/FCAW - Welding helmet - X-Metal
Key features
- powerful - welds MIG/MAG and TIG up to 180 A, as well as MMA up to 160 A
- Variable – wire speed and voltage infinitely variable for MIG/MAG
- Clear – easy handling and clear menu navigation with LED display
- Indestructible – the material used, TECAMID 66, is not only flame-repellent, but also dimensionally stable, abrasion-resistant, low-wear and resistant to thermal and chemical influences.
- View through - large field of view of 93 x 43 mm
Delivery details
Returns and warranty
Downloads
BLACK FRIDAY ENDS IN
0
d
:
0
h
:
0
min
:
0
s
Similar categories
Technical details
View type
Monochrome
Ignition MMA
Pilot ARC
Ignition TIG
HF
Colour
Black
Wire speed [m/min]
2-13
Efficiency [%]
85
Field of view [mm]
93 x 43
Wire diameter [mm]
Ø0.6/0.8/0.9/1.0
Duty cycle for 40°C [%]
30
Angle adjustable [°]
135
Input power [kVA]
5.5
Power factor
0.8
MMA welding current [A]
160
Shade control
DIN 9-13
TIG welding current [A]
180
Max. input power [kVA]
5.5
Insulation class
H
Max. input current [A]
27
UV/IR protection
Up to DIN 16
Bright mode range
DIN 4
Rated Input current [A]
18.2
Storage temperature [°C]
-20 to 70
IEC protection class
IP21S
Max weldable thickness [mm]
MMA: 6 | WIG: 4
Filter cartridge size [mm]
110 x 90 x 9
Switching time / Shifting time [s]
< 1/25000
Delay time [s]
0,1 - 1,0
Details of electricity supply
Solar cells and replaceable lithium battery (1 × CR2450)
Shade mode range / light protection
9 - 13/4
ARC-Force
Yes
Anti Stick
Yes
Hot Start
Yes
Grind mode
Yes
Water cooling
No
Flux Cored Wire
Yes
Gas magnetic valve
No
Arc sensors
2
Homogeneity
1
Optical class
1
Angle dependency
2
Scattered light
1
Dimensions (LxWxH)
0 x 0 x 0 cm
Weight
0 kg
Shipping dimensions (LxWxH)
0 x 0 x 0 cm
Shipping weight
0 kg

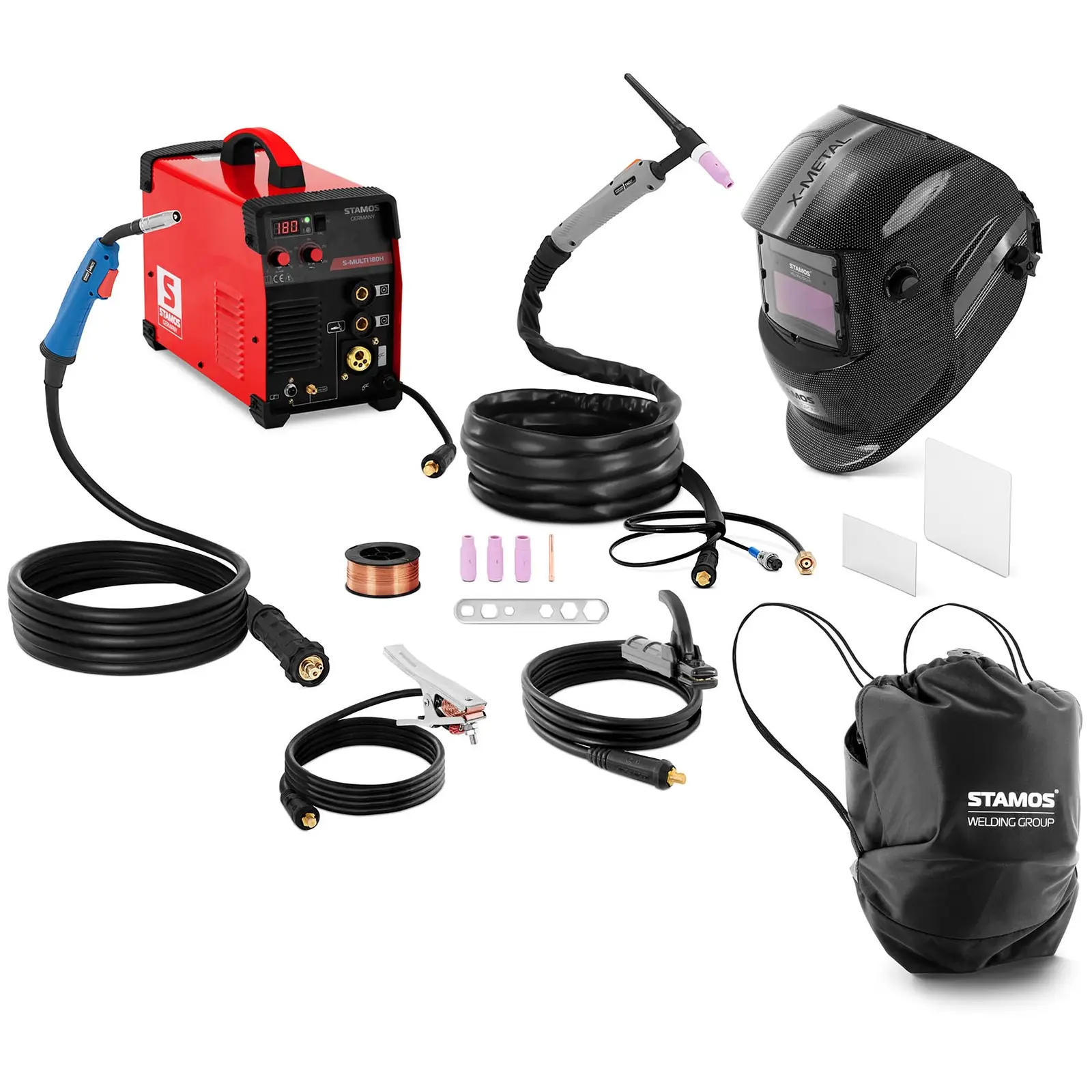

Delivery package
- Combi welder S-MULTI 180H
- MIG torch with hose package (3,5 m)
- TIG torch with hose package (3.5 m)
- Electrode holder with cable (1.8 m)
- Mass cable (1.5 m)
- Voltage transformer socket
- Welding helmet X-Metal
- Protective bag
- Set of protective lenses (internal and external)
Product Description
Flexible and safe! The welding set convinces in every welding situation
You want the flexibility of a combination welder with solid performance values that is easy to operate? Then use the compact 4-in-1 welding machine S-MULTI 180H from Stamos Germany! Whether you weld with MIG/MAG or TIG up to 180 A or use MMA up to 160 A, the combi welder offers the right welding method for every welding situation with and without gas. For your safety, you will find the indestructible welding helmet X-Metal in the set.
This set includes the following products:
