Item: EX18000634

|

Model: ENTRIX 200D-SET-7

Welding set - ALU welder - 200 A - pulse - digital - welding helmet X-Metal

On Sale
€699.00 €749.00
Limited time offer Price includes 23% VAT.
Low stock
FREE DELIVERY approx. Monday, 18 November
Lowest price guaranteed
Stamos Welding Group
Key features
  • Flexible - ideal for steel, stainless steel, copper and thanks to TIG AC and pulse function also suitable for aluminium
  • modern - IGBT inverter with 2T/4T function and high-frequency ignition
  • clearly arranged - digital control panel with large LCD display for precise welding results
  • Indestructible – the material used, TECAMID 66, is not only flame-repellent, but also dimensionally stable, abrasion-resistant, low-wear and resistant to thermal and chemical influences.
  • Fast - 2 sensors with a response time of an impressive 1/25000 s
Delivery details
Returns and warranty

Technical details

View type
Monochrome
Ignition TIG
HF
Material
Stainless steel
Aluminium
Carbon steel
PA66
Colour
Black
White
Efficiency [%]
80
Field of view [mm]
93 x 43
Angle adjustable [°]
135
Duty cycle for 40°C [%]
40
Input power [kVA]
6.06
Power factor
0.73
MMA welding current [A]
30-200
Pulse current [A]
10-200
Gas after-flow [s]
1-10
Shade control
DIN 9-13
Max. input power [kVA]
9.6
Insulation class
F
Norm Compliance
EN60974-1
Max. input current [A]
TIG: 28; MMA: 43.6
UV/IR protection
Up to DIN 16
Bright mode range
DIN 4
Current balance (AC)
10-90%
Rated Input current [A]
TIG: 17.7; MMA: 27.6
Storage temperature [°C]
-20 to 70
Filter cartridge size [mm]
110 x 90 x 9
Switching time / Shifting time [s]
< 1/25000
Pulse frequency (AC-Mode) [Hz]
0.5-200
Pulse frequency (DC-Mode) [Hz]
0.5-200
Delay time [s]
0,1 - 1,0
Output current frequency (AC) [Hz]
0.5-200
Details of electricity supply
Solar cells and replaceable lithium battery (1 × CR2450)
Shade mode range / light protection
9 - 13/4
2T / 4T
Yes
ARC-Force
Yes
Hot Start
Yes
Grind mode
Yes
Arc sensors
2
Homogeneity
1
Optical class
1
Angle dependency
2
Scattered light
1
Dimensions (LxWxH)
0 x 0 x 0 cm
Weight
0 kg
Shipping dimensions (LxWxH)
0 x 0 x 0 cm
Shipping weight
0 kg

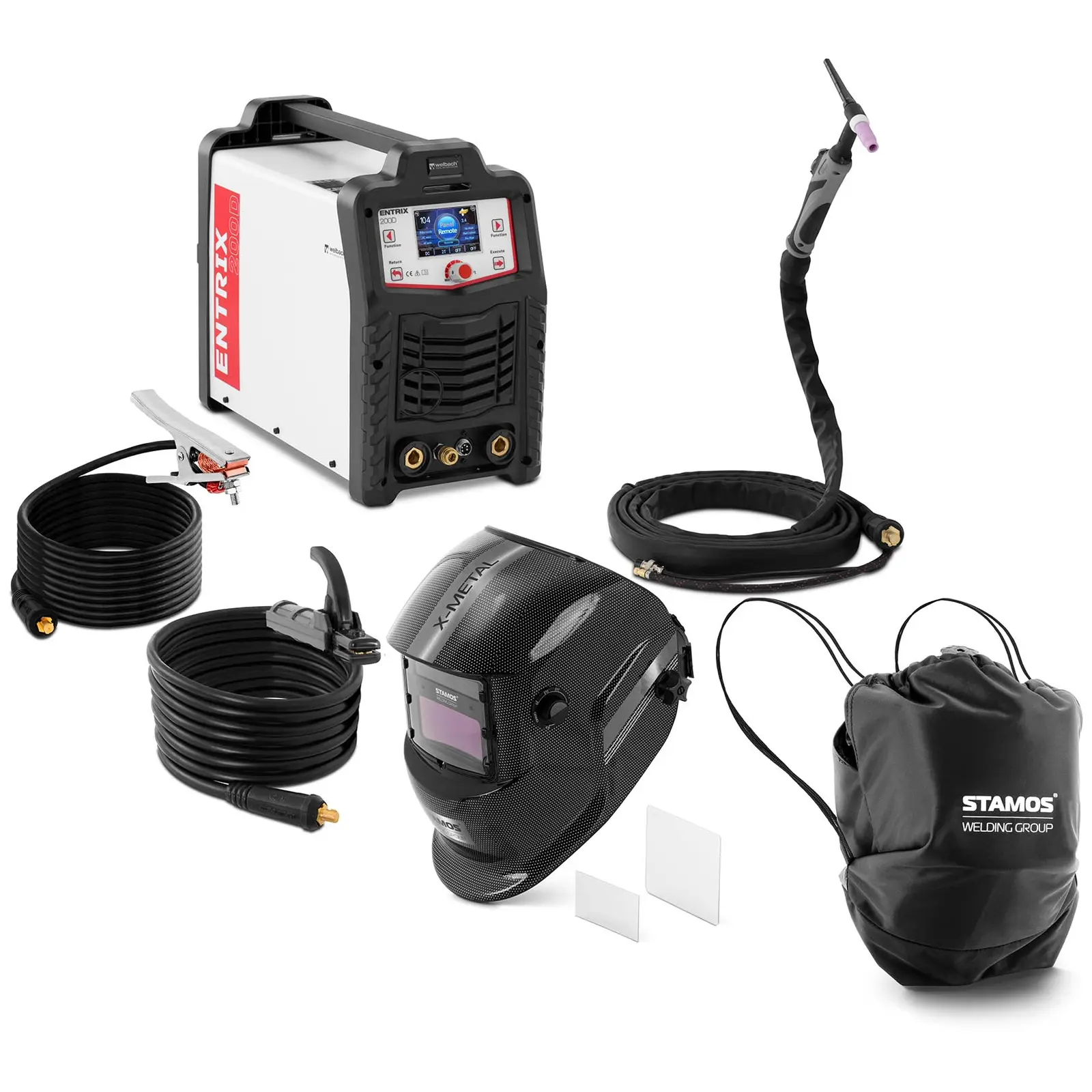

Delivery package

  • Aluminium welding set ENTRIX 200D-SET-7:
  • TIG Welding Torch WP26 with Hose Package (4 m)
  • Ground clamp with cable (3 m)
  • Electrode holder with cable (3 m)
  • Welding helmet X-Metal
  • Protective bag
  • Set of protective lenses (inside and outside)

Product Description

Welding set consisting of ALU welding machine and welding helmet

Whether aluminium, steel, stainless steel or copper, you always use the multi-talent with alternating current (AC) as well as direct current (DC) at a welding thickness of 0.5 - 5 mm optimally as required by your workpiece. The selection of all welding parameters and the welding current up to 200 A is very easy on the clearly arranged control panel with LCD display. With just a few buttons and a rotary control, you can regulate all values effortlessly. This is how you achieve precise welding results that are worth seeing! For your safety, you will find the indestructible welding helmet X-Metal in the set.

Make the TIG AC DC welder big with the pulse function!

The modern IGBT inverter allows you to quickly switch between the welding methods TIG DC, TIG AC and E-Hand. With up to 200 A, you can weld most metals effortlessly - no matter what the conditions. Use the pulse function for optimum welding results. Select numerous parameters for the pulse function, such as initial, basic or final current, and adjust them optimally to the workpiece using the control panel. With the ergonomically shaped welding torch, you can work from various positions, whether vertical, horizontal or overhead. In the process, you achieve high quality welds with less sparks or spatter.

The modern IGBT inverter allows you to easily change all parameters, be it switching from AC to DC or selecting 2-stroke or 4-stroke operation. You want to weld outdoors even in strong winds? Then use the electric hand welding method. With a stable current of up to 200 A, you can achieve very good welding results on a wide range of metals with a thickness of 1 to 6 mm, such as steel, iron, cast iron, nickel or copper. For best results, use the Hot Start and Arc-Force functions.

Safety with perspective: The X-Metal welding helmet

Access good optical properties, a very fast reaction speed as well as a light weight and put on the welding helmet X-Metal when welding! The automatic welding helmet offers you an adjustable light protection bandwidth of DIN 9-13 as well as DIN 4. With the help of a self-test, you can optimally adjust the light protection to your needs. With a 93 x 43 mm range of view, you can keep all the essential details in view. Thanks to a very fast response time of 1/25000 s from light to dark, you are protected from harmful arc beams at all times.

The extremely lightweight welding helmet made of synthetic material weighs only 0.5 kg, so you can wear it effortlessly even during long work sessions. Simply adapt the X-Metal to the shape of your head. In addition, the welding helmet offers you a neck guard. The TECAMID 66 material blend of polyamide 66 and nylon 66 used is characterised by good stiffness, hardness, high abrasion resistance and thermal dimensional stability. In addition, nylon 66 is low-wear with a low friction loss. The very good thermal, chemical and mechanical properties will let you use the helmet for a long time even in harsh conditions.
